In-line Emulsifying Machine

Application

It is used to modify or emulsify bitumen. Meanwhile, the pump is widely appliedd to continuous production in the industries of pesticides, fuel oil, heavy oil, diesel oil, textiles, paper, additives, food, cosmetics, and liquid wash. It has strong function in cycle dispersing, shearing, emulsion, and homongenizaing.

Working principle

Firstly, YongTong Liquid Emulsifying pump works with continuous high-volume production capacity. There is no dead ends. The distribution is narrower, even higher. It is easy to operate, and automatic operation can be realized. secondly, it features as compact structure, easy installation, small footprint, stable operation, low noise. Thirdly, the work of cavity transmission uses cantilever. Axial feed, radial discharge can be realized. Fourthly,it is applicable to high temperature, high viscosity, large flow, and other conditions, such as modified asphalt, emulsified asphalt, pulp dispersion, plastic, rubber and other fields. lastly, if storage tank accompanied, the machine can be used for continuous operation of the tandem process. It also can be used in the iterative process. This design ensures that all the materials have to exit through the gap of the stators and rotors. The extraction capacity lis arge enough to pump up the materials, and the continue downstream needn’t auxiliary pump, special single or double mechanical seal is adapted in the process. Advice: if intermittent high-shear emulsifier is matched, it handles with a better effect

Introduction

There are 3 series of the machine:1. Emulsifying pump (with 1 stage ) 2. Emulsifying pump (with 2 stage ) 3. Emulsifying pump (with 3 stage )
It will well meet your demannd.

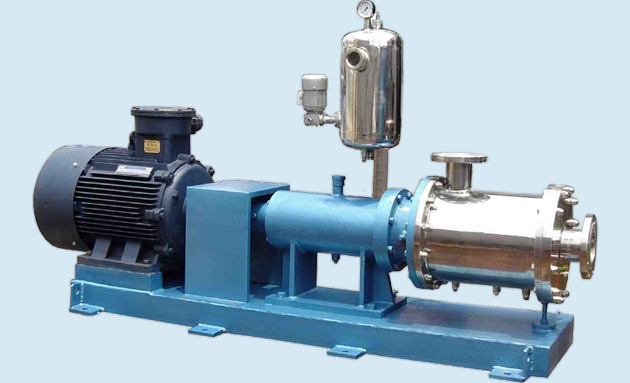

三級管線式乳化機實物照片

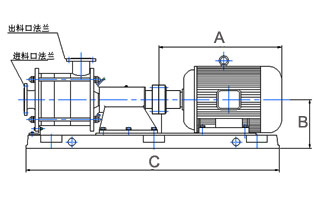

三級管線式乳化機外形圖

Outline of in line emulsifier (with 3 stages)

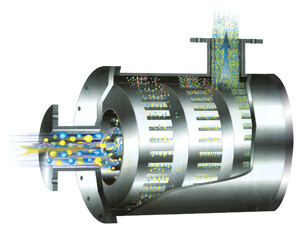

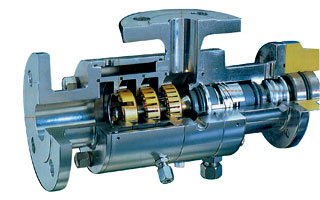

三級管線式乳化內部結構

Inside structure of in line emulsifier (with 3 stages)

There are 3 groups of rotors and stators, which shear and disperse the materials.

CONFIGURATION
1.Temperature: -10℃---+140℃
2.Noise: <85dB(A)
3.Elctric source: 380V 50HZ
4.Power: 1.1KW---75KW
5.Scavenging: CIP/SIP
6.Slew time: continuous
7.Heating or cooling sleeve
8.Frequency control motor
9.Mechanical cooling recycle system
Detialed description and working principle

Technical Parameter

Temperature：-10℃ to +140℃
Noise Level：<85dB(A)
Power：380V 50HZ
Configuration Power：1.1KW to 75KW
Cleaning：CIP/SIP
Rotation time：continuous
It can be equipped with working chamber jacket (heating or cooling)
It can be equipped with explosion-proof motor（EX）
It can be equipped with frequency conversion motor, cooling circulation system can be equipped with mechanical seal
It can be equipped with explosion-proof motor（EX）
It can be equipped with frequency conversion motor, cooling circulation system can be equipped with mechanical seal

Technical parameter

Emulsifying pump (with 1 stage )

MODEL	POWER (Kw)	SPEED (rpm)	CAPACITY (m3/h)	DIMENSION（mm））				INLET	OUTLET
MODEL	POWER (Kw)	SPEED (rpm)	CAPACITY (m3/h)	A	B	C	D	INLET	OUTLET
GR4-1	4.0	2890	4	400	112	880	950	DN40	DN32
GR7.5-1	7.5	2900	7	475	132	1130	950	DN50	DN32
GR22-1	22	1470	25	710	180	1364	1035	DN80	DN65
GR37-1	37	1480	40	820	225	1600	1035	DN125	DN100
GR55-1	55	1480	80	930	250	1900	1035	DN150	DN100

Emulsifying pump (with 2 stage )

MODEL	POWER (Kw)	SPEED (rpm)	CAPACITY (m3/h)	DIMENSION（mm）				INLET	OUTLET
MODEL	POWER (Kw)	SPEED (rpm)	CAPACITY (m3/h)	A	B	C	D	INLET	OUTLET
GR4-2	4.0	2890	2	285	112	995	900	DN40	DN32
GR7.5-2	7.5	2890	4	475	132	1300	1050	DN50	DN50
GR22-2	22	1470	18	710	180	1536	1050	DN80	DN65
GR37-2	37	1480	30	820	225	1840	1050	DN125	DN100
GR55-2	55	1480	60	930	250	2157	1050	DN150	DN100

Emulsifying pump (with 3 stage )

MODEL	POWER (Kw)	SPEED (rpm)	CAPACITY (m3/h)	DIMENSION（mm）				INLET	OUTLET
MODEL	POWER (Kw)	SPEED (rpm)	CAPACITY (m3/h)	A	B	C	D	INLET	OUTLET
GR4-3	4.0	3000	2	323	100	897	900	DN40	DN32
GR7.5-3	7.5	3000	4	518	160	1196	1050	DN50	DN50
GR22-3	22	2890	18	766	200	1483	1050	DN80	DN65
GR37-3	37	1500	30	818	225	1705	1050	DN150	DN125
GR55-3	55	1500	60	930	280	2000	1050	DN150	DN125

REMARKS

the flow range refers to the medium "water"
If cyclic process used, we recommend to use intermittent high-shear dispersing emulsifier in conjunction.
If the materials need dealing with are high-temperature, high pressure, flammable, explosive, corrosive, please kindly provide precise parameters
if you deal with illiquid medium, you are recommended to match a pumping whose pressure ≤ 0.2MPa.
viscosity for each additional 1000mPax, nominal productivity will be reduced by 20%.
materials with viscosity of 3000mP must be pumped into, the pump should be used as a continuous pump.
When the material flow is samll, you’d better pay more attention to observations of temperature.
It is customizable according to your needs if detailed information provided.
The pink parameter is what we recommend to u.
Pls send us detailed inquiry, and I’d like to quote u the best price.
