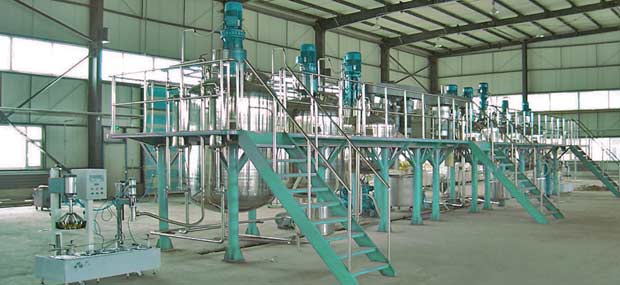

Complete plant for coatings /paintings

Complete plant for coatings /paintings
 Application
It is a ful line to produce all kinds of caotings and paintings£¬such as water-based paints and coatings, oil-based oil paintings and cioatings.
 Working principle
Firstly,This device can independently accomplish the process of emulsifying, dispersing, grinding, refining, cooling, filtration, vacuum suction, as well as semi-automatic filling. The yeild is about 5000 ton.(It is customizale according to ur needs) 8 tanks are separately controlled by8 filters.

 Introduction

YT-FÐÍÍ¿ÁϳÉÌ×ÔO‚ä



Main Features

Water-based Paint Complete Production Line consists of materials feeding system, dispersing and grinding paste system, tinting system, discharging and filtration system, pipeline system, control system, filling system, cooling, cleaning, and platform. From materials feeding to finished product packing, the whole process works under completely closed condition. Pipeline production process is with high efficiency. International advanced dispersion and grinding system is adopted to realize good fineness and stable product with good quality.

Control System

1. IPC,Touch Screen as host computer of the system are all from international famous brand to ensure the control system are reliable.
2. Adopts weight measurement and flow measurement, high precision, good stability, swift response and long service life. It measures the materials feeding/discharging accurately and display it on the host computer to avoid error caused by operator during operation to improve the product quality.
3. Programmable Logic Controller (PLC), Analog input module are all from international famous company. They are compact in structure, strong capability in anti-interference, stable and reliable.
4. On-spot control panel, MCC Cabinet, PLC box.

Remarks

As the plant is nonstandard, when u make an enquiry please send us your requirements as a reference so that we can manufacture it for you.

The following is a configuration list we have made for one of our clients, it is supplied for reference.

Configuration list for 3000-5000 tons/year Water-based Paint Complete Production Line (semi automation)

NO

NAME

SPEC

QUATIY

1

REACTOR KETTLE

500 L

1 SET

2

HORIZOANTAL SAND MILL

40 L

1 SET

3

COLOR MIXING TANK

1000 L

1 SET

4

EMULSION MEASUREMENT TANK

800 L

1 SET

5

FILTER

0.5 SM

1 SET

6

VACUUM PUMP

COMMON

1 SET

7

VACUUM BUFFERING TANK

200 L

1 SET

8

POWDER TAKING TANK

50 L

1 SET

9

LIQUID TAKING TANK

100 L

1  SET

10

ELECTRONIC CONTROL SYSTEM

Including the control cabinet, relays, thermal protection, air switches and cable lines

1 SET

11

PALTFORM

1.3.5*2.8*2 approximation (aluminum alloy pattern surface whose thickness is 3mm
2. SS 304 railing

1 SET

12

PASTE TAKING TANK

500 L

1 SET

13

FILLING MACHINE

COMMON

1 SET

Technical parameter

No.

System

Equipment

Description

Quantity(set)

1

Electric control

Electric control system

PLC Relay Heat Protector Air switch and cable conductor ect.

1

2

Absorbing system

Vacuum pump

5.5KWpump capacity :3m3/min

1

Vacuum pump

7.5KWpump capacity:6m3/min

1

Vacuum buffering tank

Stainless steel

2

Liquid material sucker

Stainless steel

3

Powder lot adding slot

Stainless steel

4

Additives adding container

Stainless steel

6

Liquid Batcher

US GPI Number reveals

3

3

Pulping system

Dispersing tank

1000Lairproof

1

Dispersing tank

1500L airproof

1

Dispersing tank

2000L airproof

1

High shear disperser

18.5KW  Double dispersing plate

2

High shear disperser

30KW   Double dispersing plate

1

High shear disperser

37KW   Double dispersing plate

1

Horizontal sand-grinding machine

30L  22KW

1

Basket type sand-grinding machine

22KW Frequency control   Double action absorbing system

3

4

Tuning paint system

Multifunction tank

1000Lairproof,Frame mixer

1

Tuning paint tank

2000Lairproof,paddle mixer

2

Tuning paint tank

3000L airproof, paddle mixer

1

Tuning paint tank

4000L airproof, paddle mixer

2

Low-speed mixer

7.5KWPlanet cycloid Deceleration machine 85R/min

2

Low-speed mixer

11KW Planet cycloid Deceleration machine 85R/min

1

Low-speed mixer

11KW Planet cycloid Deceleration machine 65R/min

1

Low-speed mixer

15KW Planet cycloid Deceleration machine 85R/min

2

5

Discharge and filter system

Air compressor

7.5KW

1

Kick type bag filter

Stainless steel

4

6

Packaging system

Canned packaging

Assembly parts

2

7

Piping system

Piping system

Ball valve, adapter, stainless steel pipe and electric route

1

8

Operation platform

Operation platform

25×3×2surface:3mm,aluminium alloy tracery panel, stainless steel railing

1

 Notice
Please provide your capacity and special need when enquiry happens so that we would quote you the best price as soon as possible. Tkanks for your understanding!
